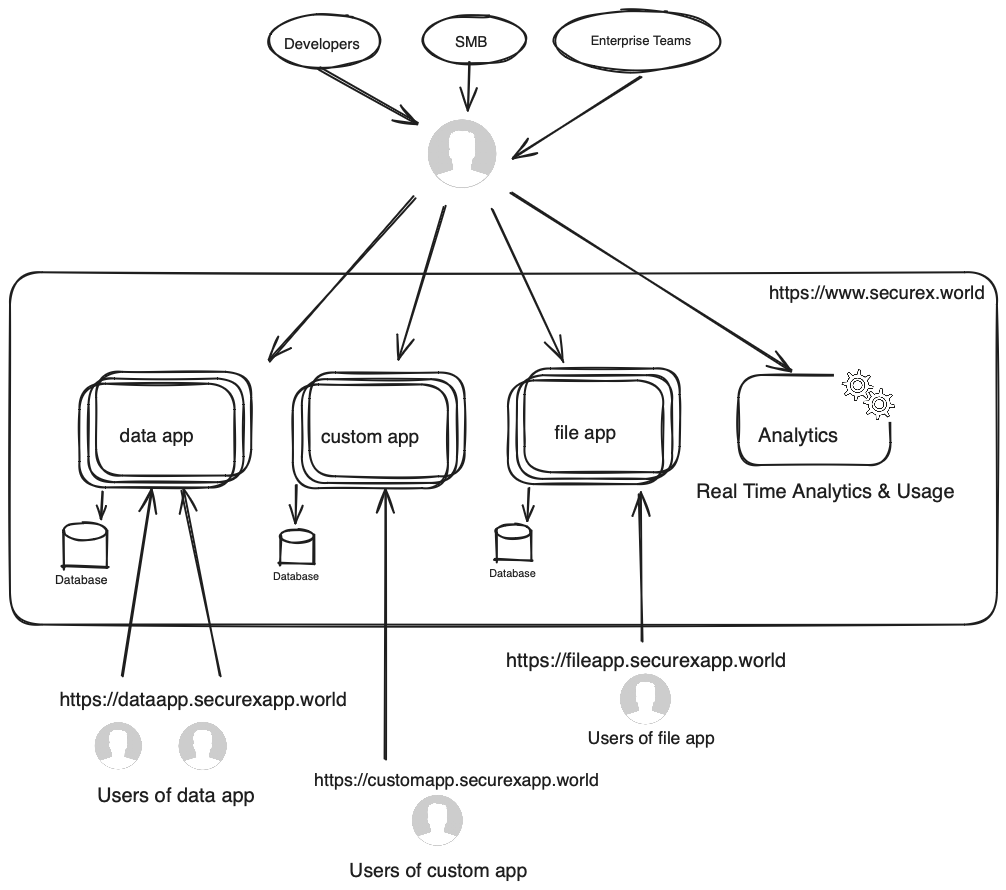

High Level Architecture

As a Small or Medium Business or a Developer looking to build the next app, the cost of building and setting the Cloud Infrastructure, Database scalability, Network and Traffic routing, Authorization & Authentication and Permissions framework, is too high. This can take months of development and maintainence efforts.

Securex World makes building, deploying and maintaining applications in cloud Easy. saving Time and Cost.

As a user of Securex World, you can deploy pre-built application and APIs with in minutes and available to use. Also control the usage by scaling up for peak times usage or scheduled a scale down time.

Building Applications

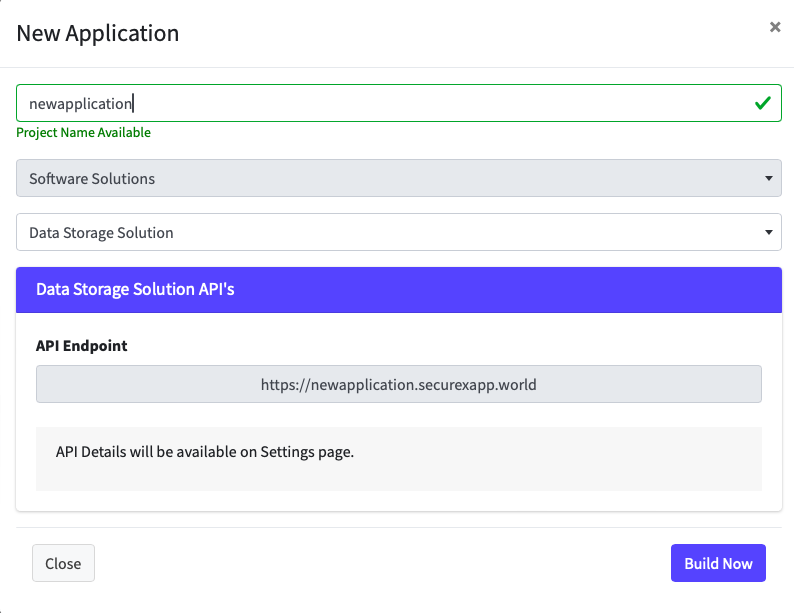

Login to Securex World platform. You can build applications with just few buttons clicks.

You can choose from many pre-built apps or a custom application. It takes few minutes to deploy application and build the traffic routing and encrypt database access. Once ready, you can manage users and other actions from settings page.

Manage Application Users

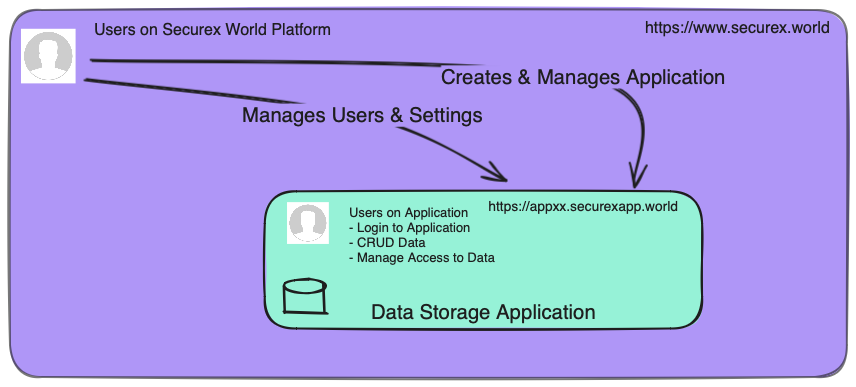

Securex World is built to enable SMB and individual developers to focus on their business and the next idea by providing complex application and infrastructure ready to be deployed in minutes.

As a user on Securex World, you can deploy pre-built application and manage its users and their access. Or bring your own custom application and run at scale.

Add users account on your application

As an application administrator, you can use the application api key to add user account.

curl --location '${BASE_APP_URL}/account/add' \
--header 'Content-Type: application/json' \
--header 'Authorization: ${API_KEY}' \
--data-raw "{
    "email" : "EMAIL_ADDRESS"
}"

This will send an invitation email to EMAIL_ADDRESS to register on your application with account id and temporary one time access key which can be used by user to register to your application. Template of email can be customized.

Register for Application

( UI & API based )

Add users account on your application

Registration for application is a two step process.

1. Application administrator sends invite to users from Securex World dashboard. This will send a registration email to respective users with access key.

2. Users of your application can use the one time access key and account id to register. The registration process can either be completed on the UI for the app OR via rest api as below

curl --location 'https://BASE_APP_URL/users/register' \
--header 'Content-Type: application/json' \
--header 'Authorization: ONE_TIME_KEY' \
--data-raw '{
    "email" : "EMAIL_ADDRESS",
    "accountId" : "ACCOUNT_ID",
    "firstName" : "FIRST_NAME",
    "lastName" : "LAST_NAME",
    "password" : "PASSWORD"
}'

Once successfull, users of application , can login via REST call to generate Auth Token.

Generate Application Token

Registered users of application can generate auth token. Administrator of applications can set access control from App Settings page.

curl --location 'https://BASE_APP_URL/users/token' \
--header 'Content-Type: application/json' \
--data-raw '{
    "email" : "EMAIL_ADDRESS",
    "password" : "PASSWORD"
}'

Once successfull, users of application , can login via REST call to generate Auth Token.

Create DB Schema

Registered users of application can generate auth token. Administrator of applications can set access control from App Settings page.

curl --location 'https://BASE_APP_URL/db/schema?userName=USERNAME' \
--header 'Content-Type: application/json' \
--header 'Authorization: BEARER_TOKEN' \
--data '{
    "schemaName" : "DB_SCHEMA_NAME",
    "schemaDetails" : [
        {
            "name" : "COLUMN_NAME",
            "type" : "COLUMN_TYPE"
        }
    ],
    "index" : [
        {
            "name" : "COLUMN_NAME",
            "type" : "INDEX_TYPE"
        }
    ]
}'

Update DB Schema

Any existing DB Schema's can be updated to "add" more column.
Any existing column with data cannot be update

curl --location --request PUT 'https://BASE_APP_URL/db/schema?userName=USERNAME' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer BEARER_TOKEN' \
--data '{
    "schemaName" : "DB_SCHEMA_NAME",
    "schemaDetails" : [
        {
            "name" : "COLUMN_NAME",
            "type" : "COLUMN_TYPE"
        }
    ]
}'

Get DB Schema

Any existing DB Schema's can be updated to "add" more column.
But an existing column with data cannot be update

curl --location 'https://BASE_APP_URL/db/schema?schemaName=DB_SCHEMA_NAME&userName=USERNAME' \
--header 'Authorization: Bearer BEARER_TOKEN

Add Data

Adding data to schema is a rest api call that takes a list of records and authenticates, authorizes every insert. Data added by one user will not be available to other users for the same applications. Access can be amended by original user.

curl --location 'https://BASE_APP_URL/db/data?userName=USERNAME' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer BEARER_TOKEN' \
--data '{
    "schemaName" : "DB_SCHEMA_NAME",
    "data" : [
        {
            "COLUMN_NAME" : "VALUE",
            ....
        }
        ......
    ],
    "uniqueCheck" : true
}'

Get Data

Data retrieval is secure based on the authenticated user. i.e if two users added similar data set then on retrieval only one data entry is retrieved to schema is a rest api call that takes a list of records and authenticates, authorizes every insert. Data added by one user will not be available to other users for the same applications. Access can be amended by original user.

curl --location 'https://BASE_APP_URL/db/data?schemaName=DB_SCHEMA_NAME&userName=USERNAME&COLUMN_NAME=COLUMN_VALUE' \
--header 'Authorization: Bearer BEARER_TOKEN'

Patch Data

Update existing data operation. This w delete is done based on unique 'id' that's returned with every GET. Pass the 'id' in parameters to delete. If the user is authorized to delete, the data will be deleted.

curl --location --request PATCH 'https://BASE_APP_URL/db/data?userName=USERNAME' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer BEARER_TOKEN' \
--data '{
    "schemaName" : "DB_SCHEMA_NAME",
    "data" : [
        {
            "id" : "DATA_ID",
            "COLUMN_NAME" : "VALUE"
            ...
        }
    ],
    "uniqueCheck" : true

}'

Delete Data

Data delete is done based on unique 'id' that's returned with every GET. Pass the 'id' in parameters to delete. If the user is authorized to delete, the data will be deleted.

curl --location --request DELETE 'https://BASE_APP_URL/db/data?schemaName=DB_SCHEMA_NAME
&userName=USERNAME&id=DATA_ID' --header 'Authorization: Bearer BEARER_TOKEN'

Drop DB Schema

Dropping schema is irreversible action. You can only drop an empty schema and this operation will fail if there's data available in schema.

curl --location --request DELETE 'https://BASE_APP_URL/db/schema?schemaName=DB_SCHEMA_NAME
&userName=USERNAME&id=DATA_ID' --header 'Authorization: Bearer BEARER_TOKEN'
